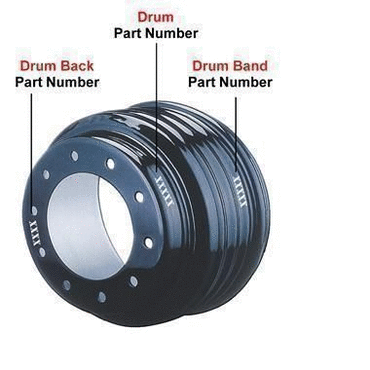

15 X 4 DRUM BL 10H Q+
Part Number
90660BK:MW1
Brand
Motor Wheel Corporation
Manufacturer Part Number
VMRS Code
013-002-023
VMRS Description
Drum - Rear Brake
90660BK:MW1 has replaced MW90660BK:IH, MW90660BK:I97, 90660BK:STM
Final Price
$270.59
0
Available for Delivery
0
Available at
Type: Centrifuge
Brake Size: 15 Inch X 4 Inch
Weight: 64 Lbs
Depth: 8.94 Inch Dp
Brake Surface Width: 4.6 Inch Wd
Hub Pilot Diameter: 8.78 Inch
Bolt Circle Diameter: 285.75 Mm
Number Of Bolt Holes: 10
Bolt Hole Diameter: 0.96 Inch
Thickness: 0.25 Inch Thk
Mount Type: Outboard
