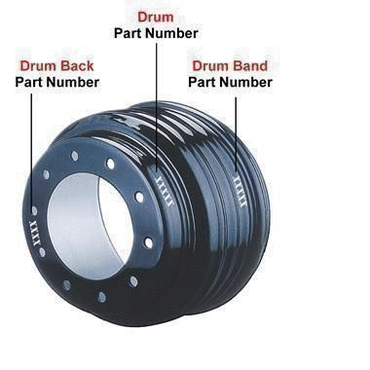

16.5 X 5 DRUM BL 10H
Part Number
90600B:MW1
Brand
Motor Wheel Corporation
Manufacturer Part Number
VMRS Code
013-002-023
VMRS Description
Drum - Rear Brake
90600B:MW1 has replaced 90600B:HAY, HL90600B:I97, MW90600B:I97, 90600B:STM
Final Price
$265.00
40
Available for Delivery
0
Available at
Type: Centrifuge
Brake Size: 16.5 Inch X 5 Inch
Weight: 76 Lbs
Depth: 9.22 Inch Dp
Brake Surface Width: 5.82 Inch Wd
Hub Pilot Diameter: 8.78 Inch
Bolt Circle Diameter: 285.75 Mm
Number Of Bolt Holes: 10
Bolt Hole Diameter: 1.25 Inch
Thickness: 0.25 Inch Thk
Mount Type: Outboard
