End Yoke
Part Number
10N4193:RI
Brand
Arvinmeritor
Manufacturer Part Number
VMRS Code
024-002-061
VMRS Description
Yoke Shaft - Drive Shaft
Final Price
$55.40
0
Available for Delivery
0
Available at

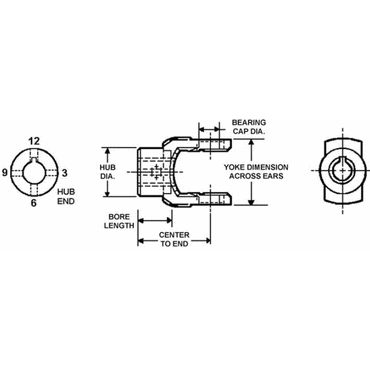

Bore Type: Round
Bore Diameter: 1.25 Inch
Center To End Size: 2.5 Inch
Bore Length: 1.13 Inch Lg
Hub Diameter: 2 Inch
Keyway Width: 0.31 Inch Wd
Keyway Location: 9-Gap
Hole Size: 0.38 Inch-16 Th
Number Of Holes: 1
Location Viewed From Hub End: 6-Ear
Distance From End To Hub: 0.63 Inch
Dimension Across Ears: 2.19 Inch
Bearing Cap Diameter: 0.94 Inch
