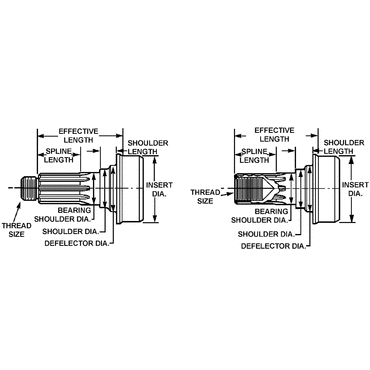

STUB-BEARING NON SLIP 1-15/16-10 SPLINE

Type: Non Slip

Spline Diameter: 1.95 Inch

Number Of Splines: 10

Insert Diameter: 3.74 Inch

Tubing Outer Diameter: 4 Inch X 0.134 Inch

Effective Length: 5.16 Inch Lg

Thread Size: 1.25 Inch-18 Tpi

Spline Length: 2.88 Inch Lg

Deflector Diameter: 2.81 Inch

Shoulder Diameter: 2.44 Inch

Shoulder Length: 0.81 Inch Lg

Bearing Shoulder Diameter: 1.97 Inch

Gauge: 10ga
