YOKE-WELD BRG PLATE 4-1/2

Name: YOKE-WELD BRG PLATE 4-1/2
Brand: Arvinmeritor
SKU: 63445257
Price: 201.59 USD
Availability: InStock

18N28-117:RI

Arvinmeritor

024-002-057

Yoke - Tube/Weld

Final Price $201.59

0 Available for Delivery

0 Available at

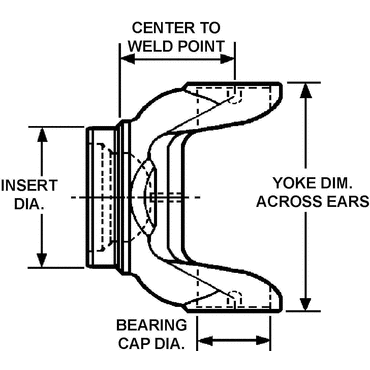

Specifications

Type: Inside Snap Ring

Dimension Across Ears: 7.55 Inch

Bearing Cap Diameter: 1.94 Inch

Tubing Outer Diameter: 4.5 Inch X 0.134 Inch

Insert Diameter: 4.24 Inch

Center To Weld Point Size: 3.38 Inch

Gauge: 10 Ga

Joint Angle: 30 Deg
